在 Nexus 或 Artifactory 中使用 REST Docs 和 Stubs 进行提供者契约测试

DeepSeek V3 中英对照 Provider Contract Testing with REST Docs and Stubs in Nexus or Artifactory

在此流程中，我们不使用Spring Cloud Contract插件来生成测试和存根。我们编写Spring RESTDocs，并从中自动生成存根。最后，我们设置构建过程来打包存根，并将其上传到存根存储站点——在我们的案例中是Nexus或Artifactory。

生产者流程

作为生产者，我们：

1. 为我们的 API 编写 RESTDocs 测试。

2. 将 Spring Cloud Contract Stub Runner starter 添加到我们的构建中 (spring-cloud-starter-contract-stub-runner)，如下所示：

   Maven

   <dependencies>
   	<dependency>
   		<groupId>org.springframework.cloud</groupId>
   		<artifactId>spring-cloud-starter-contract-stub-runner</artifactId>
   		<scope>test</scope>
   	</dependency>
   </dependencies>

   <dependencyManagement>
   	<dependencies>
   		<dependency>
   			<groupId>org.springframework.cloud</groupId>
   			<artifactId>spring-cloud-dependencies</artifactId>
   			<version>${spring-cloud.version}</version>
   			<type>pom</type>
   			<scope>import</scope>
   		</dependency>
   	</dependencies>
   </dependencyManagement>

   Gradle

   dependencies {
   	testImplementation 'org.springframework.cloud:spring-cloud-starter-contract-stub-runner'
   }

   dependencyManagement {
   	imports {
   		mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
   	}
   }

3. 我们设置构建工具来打包我们的存根，如下所示：

   Maven

   <!-- pom.xml -->
   <plugins>
   	<plugin>
   		<groupId>org.apache.maven.plugins</groupId>
   		<artifactId>maven-assembly-plugin</artifactId>
   		<executions>
   			<execution>
   				<id>stub</id>
   				<phase>prepare-package</phase>
   				<goals>
   					<goal>single</goal>
   				</goals>
   				<inherited>false</inherited>
   				<configuration>
   					<attach>true</attach>
   					<descriptors>
   						${basedir}/src/assembly/stub.xml
   					</descriptors>
   				</configuration>
   			</execution>
   		</executions>
   	</plugin>
   </plugins>

   <!-- src/assembly/stub.xml -->
   <assembly
   	xmlns="http://maven.apache.org/plugins/maven-assembly-plugin/assembly/1.1.3"
   	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   	xsi:schemaLocation="http://maven.apache.org/plugins/maven-assembly-plugin/assembly/1.1.3 http://maven.apache.org/xsd/assembly-1.1.3.xsd">
   	<id>stubs</id>
   	<formats>
   		<format>jar</format>
   	</formats>
   	<includeBaseDirectory>false</includeBaseDirectory>
   	<fileSets>
   		<fileSet>
   			<directory>${project.build.directory}/generated-snippets/stubs</directory>
   			<outputDirectory>META-INF/${project.groupId}/${project.artifactId}/${project.version}/mappings</outputDirectory>
   			<includes>
   				<include>**/*</include>
   			</includes>
   		</fileSet>
   	</fileSets>
   </assembly>

   Gradle

   task stubsJar(type: Jar) {
   	classifier = "stubs"
   	into("META-INF/${project.group}/${project.name}/${project.version}/mappings") {
   		include('**/*.*')
   		from("${project.buildDir}/generated-snippets/stubs")
   	}
   }
   // we need the tests to pass to build the stub jar
   stubsJar.dependsOn(test)
   bootJar.dependsOn(stubsJar)

现在，当我们运行测试时，存根会自动发布并打包。

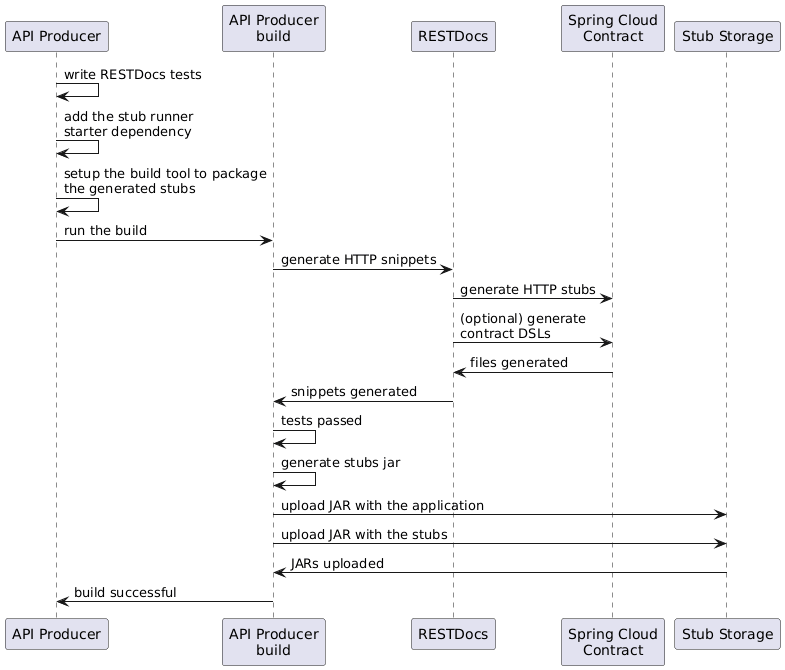

以下 UML 图展示了生产者流程：

消费者流程

由于消费者流程不受生成存根的工具影响，您可以阅读开发首个基于Spring Cloud Contract的应用来了解在Nexus或Artifactory中使用存根进行提供方契约测试的消费者端流程。
